AUTOMOTIVE 40-V, 4-CHANNEL HALF-

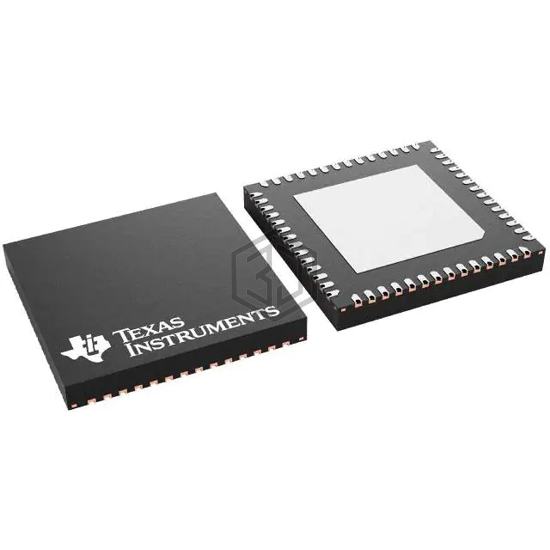

DRV8714SQRVJRQ1 is a PMIC - Full, Half-Bridge Drivers manufactured by Texas Instruments. AUTOMOTIVE 40-V, 4-CHANNEL HALF-. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -40°C ~ 150°C (TJ), voltage - supply 3.3V ~ 5.5V, package / case 56-VFQFN Exposed Pad.
In Stock: 7,602
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge |
| Applications | DC Motors, General Purpose |
| Interface | Logic, PWM, SPI |
| Load Type | Capacitive and Resistive |
| Technology | Power MOSFET |
| Rds On (Typ) | 4mOhm |
| Current - Output / Channel | 5mA |
| Current - Peak Output | 62mA |
| Voltage - Supply | 3.3V ~ 5.5V |
| Voltage - Load | 3V ~ 5.5V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Charge Pump |
| Fault Protection | Over Current, Over Voltage, Shoot-Through |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 56-VFQFN Exposed Pad |
| Supplier Device Package | 56-VQFN (8x8) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DRV8106HQRHBRQ1 | Texas Instruments | AUTOMOTIVE, 40-V, HALF-BRIDGE SM | 92% | View |
Submit your RFQ for DRV8714SQRVJRQ1 and get a quote within 24 hours.
