AUTOMOTIVE, 40-V, HALF-BRIDGE SM

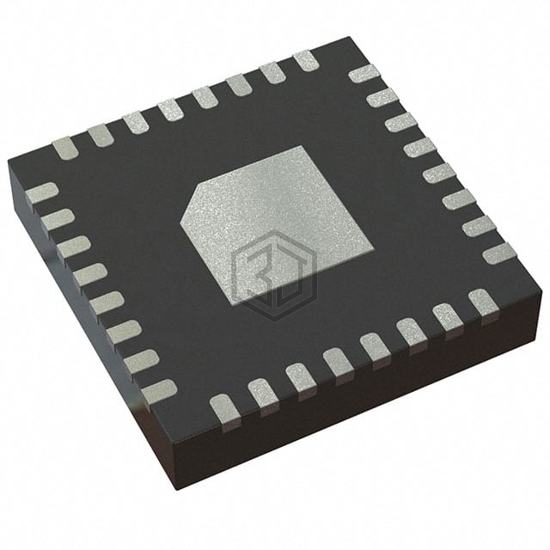

DRV8106HQRHBRQ1 is a PMIC - Full, Half-Bridge Drivers manufactured by Texas Instruments. AUTOMOTIVE, 40-V, HALF-BRIDGE SM. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -40°C ~ 150°C (TJ), voltage - supply 3V ~ 5.5V, package / case 32-VFQFN Exposed Pad.
In Stock: 3,755
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge |
| Applications | DC Motors, Relays, Solenoids |
| Interface | Logic, PWM, SPI |
| Load Type | Inductive, Capacitive, Resistive |
| Technology | Power MOSFET |
| Rds On (Typ) | 4mOhm LS, 4mOhm HS |
| Current - Output / Channel | 5mA |
| Current - Peak Output | 62mA |
| Voltage - Supply | 3V ~ 5.5V |
| Voltage - Load | 4.9V ~ 37V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Charge Pump, Slew Rate Controlled |
| Fault Protection | Over Current, Over Voltage, Shoot-Through |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-VQFN (5x5) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DRV8714SQRVJRQ1 | Texas Instruments | AUTOMOTIVE 40-V, 4-CHANNEL HALF- | 92% | View |
Submit your RFQ for DRV8106HQRHBRQ1 and get a quote within 24 hours.
