IC FF D-TYPE SNGL 8BIT 20CDIP

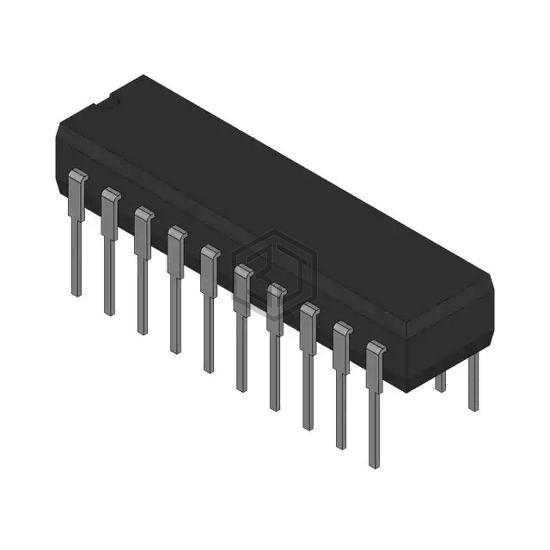

5962-8772501RA is a Logic - Flip Flops manufactured by Texas Instruments. IC FF D-TYPE SNGL 8BIT 20CDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), voltage - supply 4.5V ~ 5.5V, package / case 20-CDIP (0.300", 7.62mm).
In Stock: 7,591
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Master Reset |
| Type | D-Type |
| Output Type | Non-Inverted |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Clock Frequency | 50 MHz |
| Max Propagation Delay @ V, Max CL | 30ns @ 4.5V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 4mA, 4mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Iq) | 8 µA |
| Input Capacitance | 10 pF |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Supplier Device Package | 20-CDIP |
| Package / Case | 20-CDIP (0.300", 7.62mm) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CD74HCT273EX | Harris Corporation | IC FF D-TYPE SNGL 8BIT 20DIP | 100% | View |
| CD74HC273E | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20DIP | 87% | View |
| CD54HC273F3A | Harris Corporation | OCTAL D-TYPE FLIP-FLOP | 87% | View |
| CD54HC273F | Harris Corporation | D FLIP-FLOP, HC/UH SERIES, 8-BIT | 87% | View |
| SNJ54LS273J | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20CDIP | 84% | View |
| SNJ54LS174J | Texas Instruments | IC FF D-TYPE SNGL 6BIT 16CDIP | 84% | View |
Submit your RFQ for 5962-8772501RA and get a quote within 24 hours.
