D FLIP-FLOP, HC/UH SERIES, 8-BIT

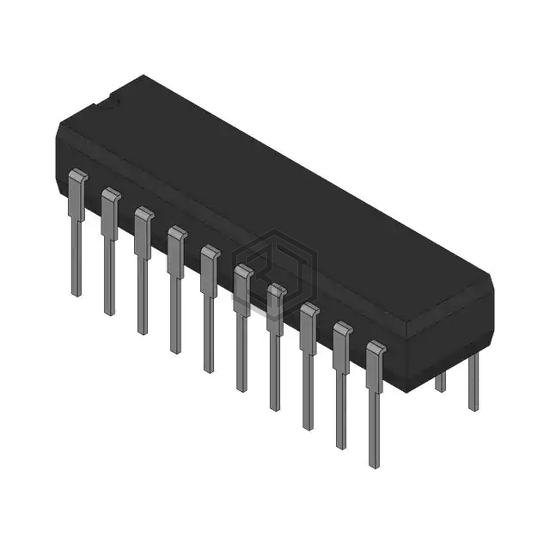

CD54HC273F is a Logic - Flip Flops manufactured by Harris Corporation. D FLIP-FLOP, HC/UH SERIES, 8-BIT. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), voltage - supply 2V ~ 6V, package / case 20-CDIP (0.300", 7.62mm).
In Stock: 5,831
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Master Reset |
| Type | D-Type |
| Output Type | Non-Inverted |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Clock Frequency | 60 MHz |
| Max Propagation Delay @ V, Max CL | 26ns @ 6V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Iq) | 8 µA |
| Input Capacitance | 10 pF |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Supplier Device Package | 20-CDIP |
| Package / Case | 20-CDIP (0.300", 7.62mm) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CD74HC273E | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20DIP | 100% | View |
| CD54HC273F3A | Harris Corporation | OCTAL D-TYPE FLIP-FLOP | 100% | View |
| SNJ54HC273J | Texas Instruments | IC FF D-TYPE SINGLE 8BIT 20CDIP | 93% | View |
| M74HC273B1R | STMicroelectronics | IC FF D-TYPE SNGL 8BIT 20DIP | 90% | View |
| CD74HCT273EX | Harris Corporation | IC FF D-TYPE SNGL 8BIT 20DIP | 87% | View |
| 5962-8772501RA | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20CDIP | 87% | View |
Submit your RFQ for CD54HC273F and get a quote within 24 hours.
