IC FF D-TYPE SNGL 8BIT 20CDIP

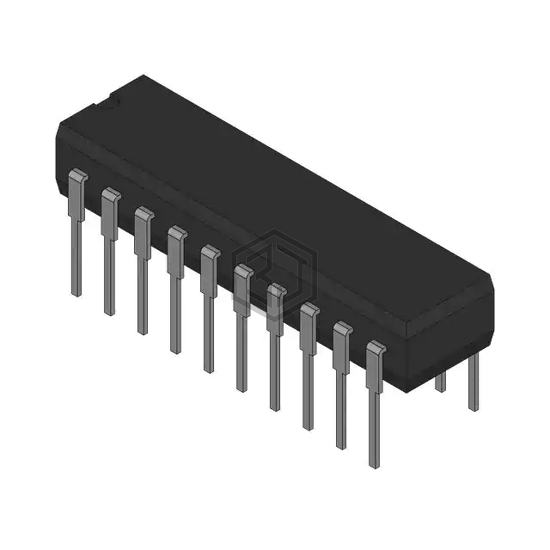

SNJ54LS273J is a Logic - Flip Flops manufactured by Texas Instruments. IC FF D-TYPE SNGL 8BIT 20CDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), voltage - supply 4.5V ~ 5.5V, package / case 20-CDIP (0.300", 7.62mm).
In Stock: 6,323
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Master Reset |
| Type | D-Type |
| Output Type | Non-Inverted |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Clock Frequency | 40 MHz |
| Max Propagation Delay @ V, Max CL | 27ns @ 5V, 15pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 4mA, 400µA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Iq) | 27 mA |
| Input Capacitance | - |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Supplier Device Package | 20-CDIP |
| Package / Case | 20-CDIP (0.300", 7.62mm) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SNJ54LS174J | Texas Instruments | IC FF D-TYPE SNGL 6BIT 16CDIP | 97% | View |
| 7801001RA | Texas Instruments | IC FF D-TYPE SINGLE 8BIT 20CDIP | 86% | View |
| CD74HCT273EX | Harris Corporation | IC FF D-TYPE SNGL 8BIT 20DIP | 84% | View |
| 5962-8772501RA | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20CDIP | 84% | View |
| CD74HCT174E | Texas Instruments | IC FF D-TYPE SNGL 6BIT 16DIP | 73% | View |
| MC74HCT174AN | onsemi | IC FF D-TYPE SNGL 6BIT 16DIP | 73% | View |
Submit your RFQ for SNJ54LS273J and get a quote within 24 hours.
