IC MOTOR DRIVER PAR 28SO

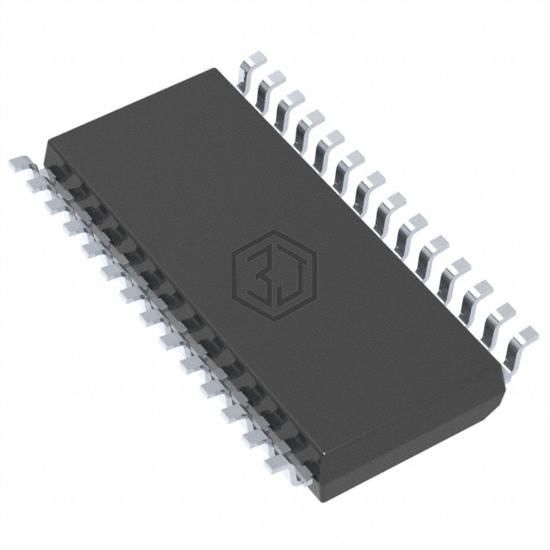

VN5770AK-E is a PMIC - Full, Half-Bridge Drivers manufactured by STMicroelectronics. IC MOTOR DRIVER PAR 28SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4.5V ~ 36V, package / case 28-SOIC (0.295", 7.50mm Width).
In Stock: 4,211
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Half Bridge (2) |
| Applications | DC Motors, General Purpose, Relays |
| Interface | Logic |
| Load Type | Inductive, Capacitive, Resistive |
| Technology | Power MOSFET |
| Rds On (Typ) | 160mOhm |
| Current - Output / Channel | 8.5A |
| Current - Peak Output | - |
| Voltage - Supply | 4.5V ~ 36V |
| Voltage - Load | 41V (Max) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | - |
| Fault Protection | Current Limiting, ESD, Over Temperature, Over Voltage, Short Circuit, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SO |
VN5770AK-E is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VN5770AKPTR-E | STMicroelectronics | IC MOTOR DRIVER PAR 28SO | 100% | View |
| VN5770AKP-E | STMicroelectronics | IC MOTOR DRIVER PAR 28SO | 100% | View |
| VN5770AKTR-E | STMicroelectronics | IC MOTOR DRIVER PAR 28SO | 100% | View |
| VN770KTR-E | STMicroelectronics | IC MOTOR DRIVER PAR 28SO | 94% | View |
| LTC7061IMSE#WPBF | Analog Devices Inc. | 100V DUAL HIGH-SIDE GATE DRVR W/ | 56% | View |
| LTC7060IMSE#WPBF | Analog Devices Inc. | 100V HALF BRIDGE DRIVER W/ FLOAT | 53% | View |
Submit your RFQ for VN5770AK-E and get a quote within 24 hours.
