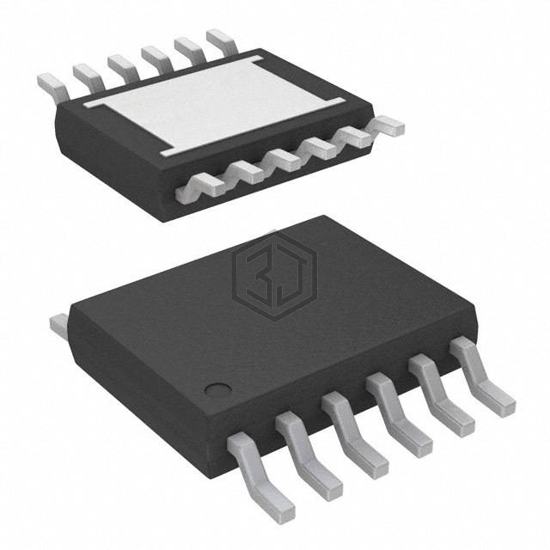

100V HALF BRIDGE DRIVER W/ FLOAT
LTC7060IMSE#WPBF is a PMIC - Full, Half-Bridge Drivers manufactured by Analog Devices Inc.. 100V HALF BRIDGE DRIVER W/ FLOAT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 6V ~ 14V, package / case 12-TSSOP (0.118", 3.00mm Width) Exposed Pad.
In Stock: 6,271
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge (2) |
| Applications | General Purpose |
| Interface | Logic, PWM, SPI |
| Load Type | Inductive, Capacitive, Resistive |
| Technology | Power MOSFET |
| Rds On (Typ) | 1.5Ohm LS, 1.5Ohm HS |
| Current - Output / Channel | 6A |
| Current - Peak Output | 6A |
| Voltage - Supply | 6V ~ 14V |
| Voltage - Load | 6V ~ 14V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit |
| Fault Protection | Shoot-Through, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 12-TSSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 12-MSOP-EP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LTC7060IMSE#WTRPBF | Analog Devices Inc. | 100V HALF BRIDGE DRIVER W/ FLOAT | 100% | View |
| LTC7060EMSE#WTRPBF | Analog Devices Inc. | 100V HALF BRIDGE DRIVER | 100% | View |
| LTC7060EMSE#WPBF | Analog Devices Inc. | 100V HALF BRIDGE DRIVER | 100% | View |
| LTC7061IMSE#WTRPBF | Analog Devices Inc. | 100V DUAL HIGH-SIDE GATE DRVR W/ | 95% | View |
| LTC7061EMSE#PBF | Analog Devices Inc. | 100V DUAL HIGH-SIDE GATE DRVR W/ | 95% | View |
| LTC7061IMSE#WPBF | Analog Devices Inc. | 100V DUAL HIGH-SIDE GATE DRVR W/ | 95% | View |
Submit your RFQ for LTC7060IMSE#WPBF and get a quote within 24 hours.
