TRENCH GATE FIELD-STOP 1200 V, 7

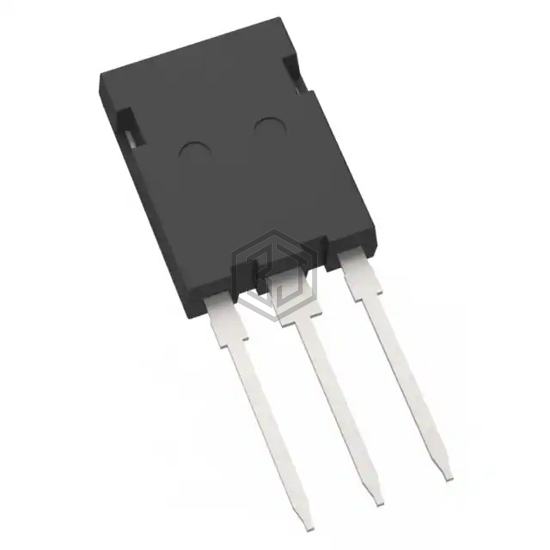

STGYA75H120DF2 is a Transistors - IGBTs - Single manufactured by STMicroelectronics. TRENCH GATE FIELD-STOP 1200 V, 7. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 150 A.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 150 A |
| Current - Collector Pulsed (Icm) | 300 A |
| Vce(on) (Max) @ Vge, Ic | 2.6V @ 15V, 75A |
| Power - Max | 750 W |
| Switching Energy | 4.3mJ (on), 3.9mJ (off) |
| Input Type | Standard |
| Gate Charge | 313 nC |
| Td (on/off) @ 25°C | 61ns/366ns |
| Test Condition | 600V, 75A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 356 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247 |
Submit your RFQ for STGYA75H120DF2 and get a quote within 24 hours.
