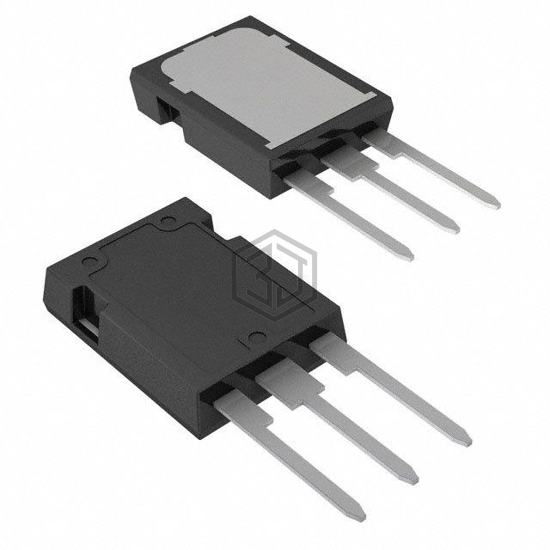

IGBT 650V 120A 469W MAX247
STGY80H65DFB is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 650V 120A 469W MAX247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 120 A.
In Stock: 362
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector (Ic) (Max) | 120 A |
| Current - Collector Pulsed (Icm) | 240 A |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 80A |
| Power - Max | 469 W |
| Switching Energy | 2.1mJ (on), 1.5mJ (off) |
| Input Type | Standard |
| Gate Charge | 414 nC |
| Td (on/off) @ 25°C | 84ns/280ns |
| Test Condition | 400V, 80A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 85 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | MAX247™ |
Submit your RFQ for STGY80H65DFB and get a quote within 24 hours.
