IGBT

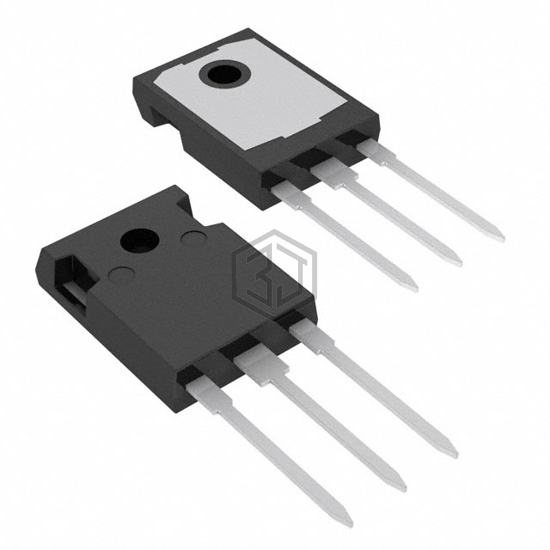

STGWA8M120DF3 is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 16 A.
In Stock: 3,351
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 16 A |
| Current - Collector Pulsed (Icm) | 32 A |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 8A |
| Power - Max | 167 W |
| Switching Energy | 390µJ (on), 370µJ (Off) |
| Input Type | Standard |
| Gate Charge | 32 nC |
| Td (on/off) @ 25°C | 20ns/126ns |
| Test Condition | 600V, 8A, 33Ohm, 15V |
| Reverse Recovery Time (trr) | 103 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247 Long Leads |
Submit your RFQ for STGWA8M120DF3 and get a quote within 24 hours.
