IGBT BIPO 600V 60A TO247-3

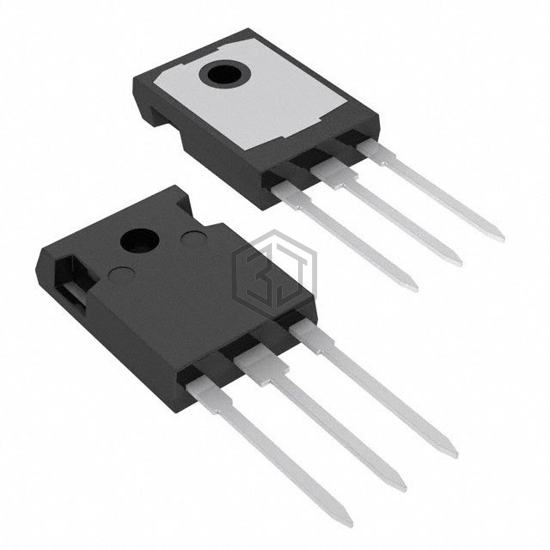

STGWA60V60DF is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT BIPO 600V 60A TO247-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 80 A.
In Stock: 2,825
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 80 A |
| Current - Collector Pulsed (Icm) | 240 A |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 60A |
| Power - Max | 375 W |
| Switching Energy | 750µJ (on), 550µJ (off) |
| Input Type | Standard |
| Gate Charge | 334 nC |
| Td (on/off) @ 25°C | 60ns/208ns |
| Test Condition | 400V, 60A, 4.7Ohm, 15V |
| Reverse Recovery Time (trr) | 74 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247 Long Leads |
Submit your RFQ for STGWA60V60DF and get a quote within 24 hours.
