TRENCH GATE FIELD-STOP 650 V, 30

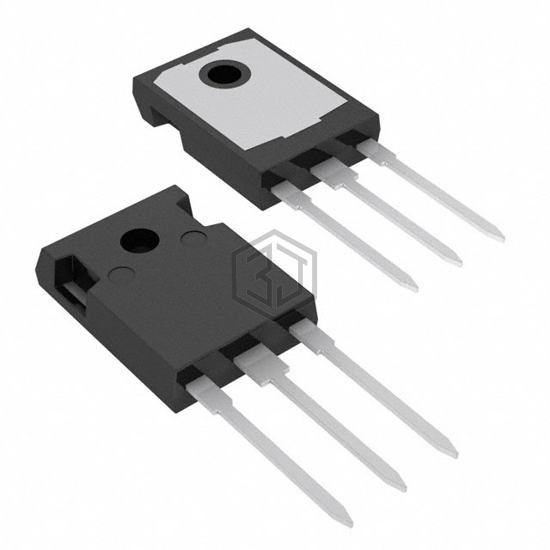

STGWA30HP65FB2 is a Transistors - IGBTs - Single manufactured by STMicroelectronics. TRENCH GATE FIELD-STOP 650 V, 30. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 50 A.
In Stock: 32
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector (Ic) (Max) | 50 A |
| Current - Collector Pulsed (Icm) | 90 A |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 30A |
| Power - Max | 167 W |
| Switching Energy | - |
| Input Type | Standard |
| Gate Charge | 90 nC |
| Td (on/off) @ 25°C | -/71ns |
| Test Condition | 400V, 30A, 6.8Ohm, 15V |
| Reverse Recovery Time (trr) | 140 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247 Long Leads |
Submit your RFQ for STGWA30HP65FB2 and get a quote within 24 hours.
