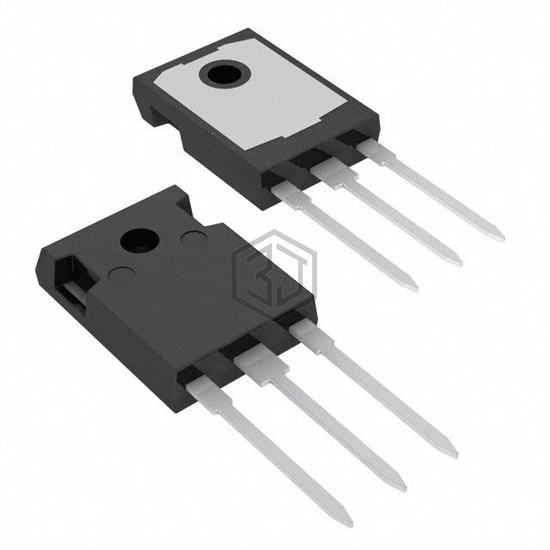

IGBT HB 1200V 25A HS TO247-3
STGWA25H120F2 is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT HB 1200V 25A HS TO247-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 50 A.
In Stock: 9,382
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 50 A |
| Current - Collector Pulsed (Icm) | 100 A |
| Vce(on) (Max) @ Vge, Ic | 2.6V @ 15V, 25A |
| Power - Max | 375 W |
| Switching Energy | 600µJ (on), 700µJ (off) |
| Input Type | Standard |
| Gate Charge | 100 nC |
| Td (on/off) @ 25°C | 29ns/130ns |
| Test Condition | 600V, 25A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247-3 |
Submit your RFQ for STGWA25H120F2 and get a quote within 24 hours.
