TRENCH GATE FIELD-STOP, 650 V, 5

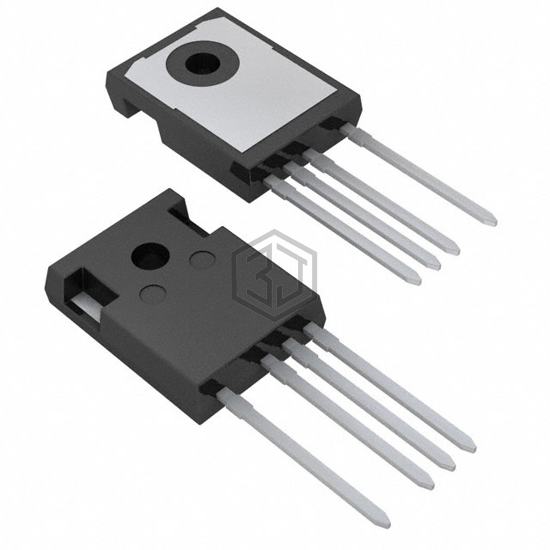

STGW50H65DFB2-4 is a Transistors - IGBTs - Single manufactured by STMicroelectronics. TRENCH GATE FIELD-STOP, 650 V, 5. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-4, current - collector (ic) (max) 86 A.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector (Ic) (Max) | 86 A |
| Current - Collector Pulsed (Icm) | 150 A |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 50A |
| Power - Max | 272 W |
| Switching Energy | 629µJ (on), 478µJ (off) |
| Input Type | Standard |
| Gate Charge | 151 nC |
| Td (on/off) @ 25°C | 18ns/128ns |
| Test Condition | 400V, 50A, 12Ohm, 15V |
| Reverse Recovery Time (trr) | 92 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-4 |
| Supplier Device Package | TO-247-4 |
Submit your RFQ for STGW50H65DFB2-4 and get a quote within 24 hours.
