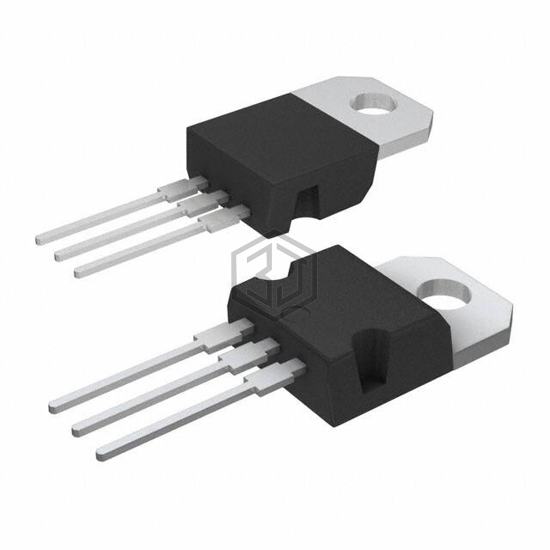

IGBT TRENCH 650V 40A TO220
STGP20M65DF2 is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT TRENCH 650V 40A TO220. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-220-3, current - collector (ic) (max) 40 A.
In Stock: 3,267
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector (Ic) (Max) | 40 A |
| Current - Collector Pulsed (Icm) | 80 A |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 20A |
| Power - Max | 166 W |
| Switching Energy | 140µJ (on), 560µJ (off) |
| Input Type | Standard |
| Gate Charge | 63 nC |
| Td (on/off) @ 25°C | 26ns/108ns |
| Test Condition | 400V, 20A, 12Ohm, 15V |
| Reverse Recovery Time (trr) | 166 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220 |
Submit your RFQ for STGP20M65DF2 and get a quote within 24 hours.
