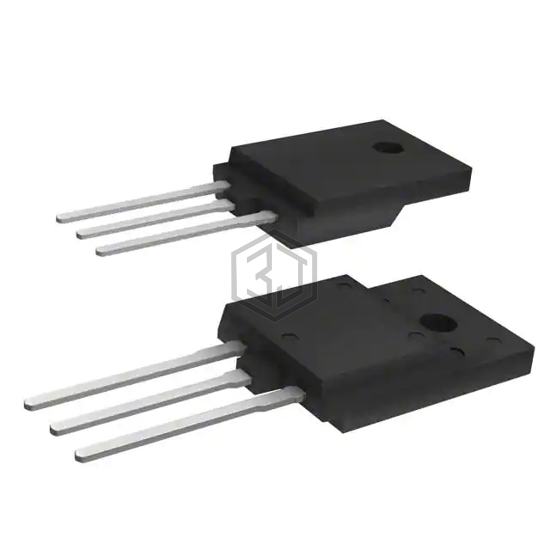

IGBT 600V 120A 79W TO-3PF
STGFW80V60F is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 600V 120A 79W TO-3PF. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-3P-3 Full Pack, current - collector (ic) (max) 120 A.
In Stock: 193
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 120 A |
| Current - Collector Pulsed (Icm) | 240 A |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 80A |
| Power - Max | 79 W |
| Switching Energy | 1.8mJ (on), 1mJ (off) |
| Input Type | Standard |
| Gate Charge | 448 nC |
| Td (on/off) @ 25°C | 60ns/220ns |
| Test Condition | 400V, 80A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-3P-3 Full Pack |
| Supplier Device Package | TO-3PF |
Submit your RFQ for STGFW80V60F and get a quote within 24 hours.
