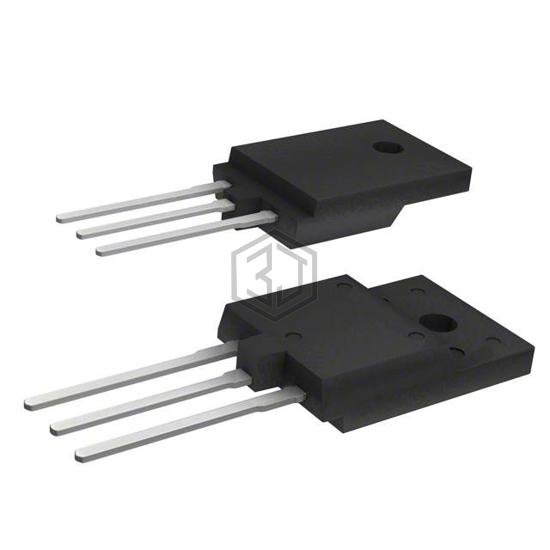

IGBT HB 650V 40A ISOWATT218
STGFW40H65FB is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT HB 650V 40A ISOWATT218. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-3P-3 Full Pack, current - collector (ic) (max) 80 A.
In Stock: 37
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector (Ic) (Max) | 80 A |
| Current - Collector Pulsed (Icm) | 160 A |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 40A |
| Power - Max | 62.5 W |
| Switching Energy | 498µJ (on), 363µJ (off) |
| Input Type | Standard |
| Gate Charge | 210 nC |
| Td (on/off) @ 25°C | 40ns/142ns |
| Test Condition | 400V, 40A, 5Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-3P-3 Full Pack |
| Supplier Device Package | TO-3PF-3 |
