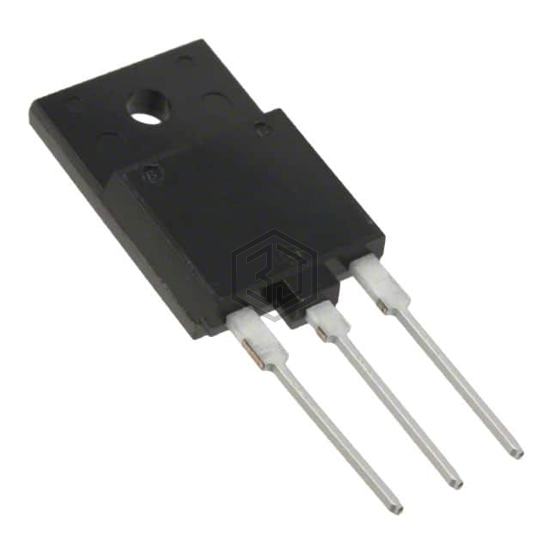

IGBT 600V 40A 52W TO3PF
STGFW20V60F is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 600V 40A 52W TO3PF. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-3P-3 Full Pack, current - collector (ic) (max) 40 A.
In Stock: 281
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 40 A |
| Current - Collector Pulsed (Icm) | 80 A |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 20A |
| Power - Max | 52 W |
| Switching Energy | 200µJ (on), 130µJ (off) |
| Input Type | Standard |
| Gate Charge | 116 nC |
| Td (on/off) @ 25°C | 38ns/149ns |
| Test Condition | 400V, 20A, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-3P-3 Full Pack |
| Supplier Device Package | TO-3PF |
Submit your RFQ for STGFW20V60F and get a quote within 24 hours.
