IGBT 600V 15A 25W TO220FP

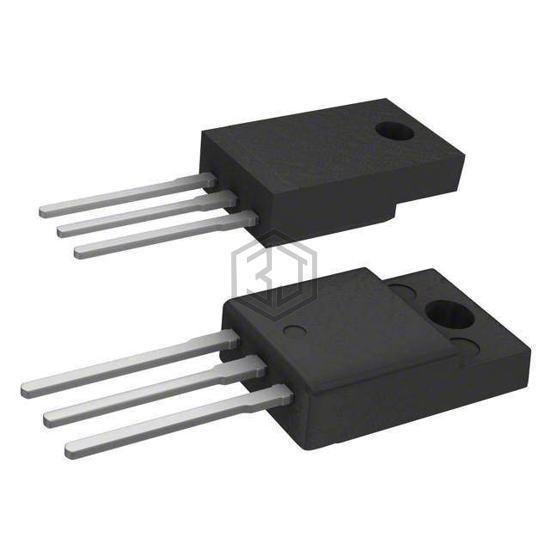

STGF7NB60SL is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 600V 15A 25W TO220FP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3 Full Pack, current - collector (ic) (max) 15 A.
In Stock: 3,361
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 15 A |
| Current - Collector Pulsed (Icm) | 20 A |
| Vce(on) (Max) @ Vge, Ic | 1.6V @ 4.5V, 7A |
| Power - Max | 25 W |
| Switching Energy | 4.1mJ (off) |
| Input Type | Standard |
| Gate Charge | 16 nC |
| Td (on/off) @ 25°C | 1.1µs/5.2µs |
| Test Condition | 480V, 7A, 1kOhm, 5V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 Full Pack |
| Supplier Device Package | TO-220FP |
Submit your RFQ for STGF7NB60SL and get a quote within 24 hours.
