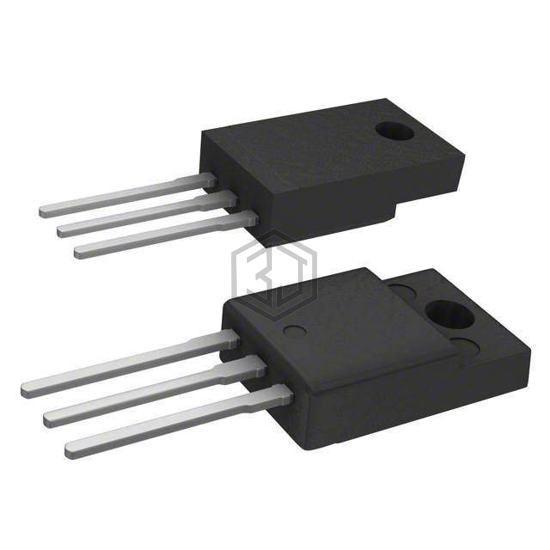

IGBT 1200V 6A 25W TO220FP
STGF3NC120HD is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 1200V 6A 25W TO220FP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3 Full Pack, current - collector (ic) (max) 6 A.
In Stock: 30
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 6 A |
| Current - Collector Pulsed (Icm) | 20 A |
| Vce(on) (Max) @ Vge, Ic | 2.8V @ 15V, 3A |
| Power - Max | 25 W |
| Switching Energy | 236µJ (on), 290µJ (off) |
| Input Type | Standard |
| Gate Charge | 24 nC |
| Td (on/off) @ 25°C | 15ns/118ns |
| Test Condition | 800V, 3A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 51 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 Full Pack |
| Supplier Device Package | TO-220FP |
