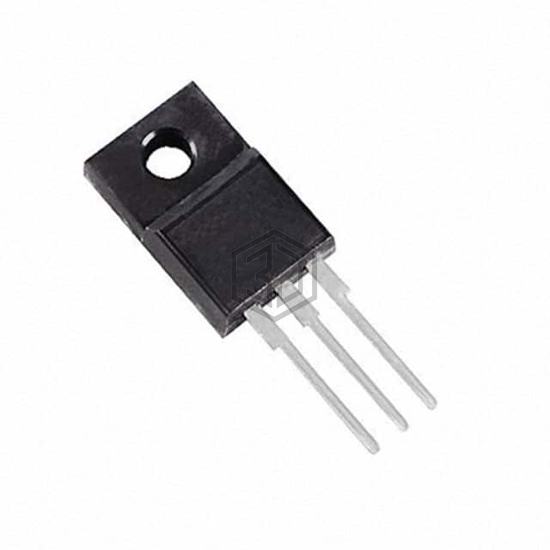

IGBT 600V 60A 37W TO220FP
STGF30H60DF is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 600V 60A 37W TO220FP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case TO-220-3 Full Pack, current - collector (ic) (max) 60 A.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 60 A |
| Current - Collector Pulsed (Icm) | 120 A |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 30A |
| Power - Max | 37 W |
| Switching Energy | 350µJ (on), 400µJ (off) |
| Input Type | Standard |
| Gate Charge | 105 nC |
| Td (on/off) @ 25°C | 50ns/160ns |
| Test Condition | 400V, 30A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 110 ns |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 Full Pack |
| Supplier Device Package | TO-220FP |
Submit your RFQ for STGF30H60DF and get a quote within 24 hours.
