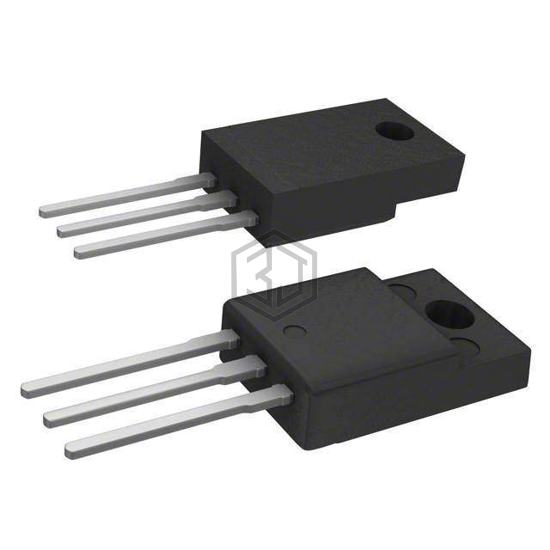

IGBT 600V 16A 32W TO220FP
STGF19NC60HD is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 600V 16A 32W TO220FP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3 Full Pack, current - collector (ic) (max) 16 A.
In Stock: 349
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 16 A |
| Current - Collector Pulsed (Icm) | 60 A |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 12A |
| Power - Max | 32 W |
| Switching Energy | 85µJ (on), 189µJ (off) |
| Input Type | Standard |
| Gate Charge | 53 nC |
| Td (on/off) @ 25°C | 25ns/97ns |
| Test Condition | 390V, 12A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 31 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 Full Pack |
| Supplier Device Package | TO-220FP |
Submit your RFQ for STGF19NC60HD and get a quote within 24 hours.
