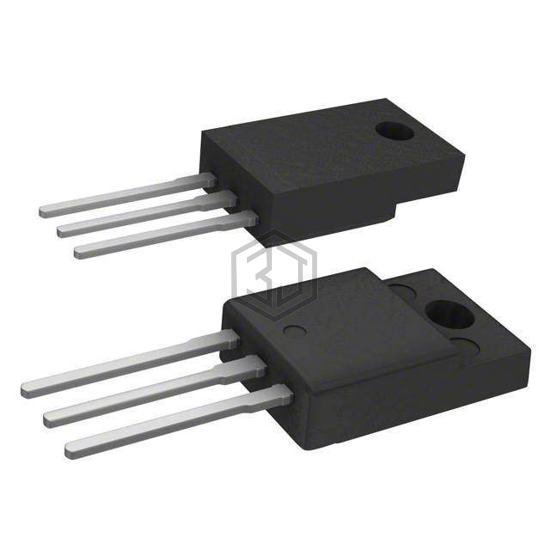

IGBT 600V 23A 25W TO220FP
STGF10NB60SD is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 600V 23A 25W TO220FP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3 Full Pack, current - collector (ic) (max) 23 A.
In Stock: 453
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 23 A |
| Current - Collector Pulsed (Icm) | 80 A |
| Vce(on) (Max) @ Vge, Ic | 1.75V @ 15V, 10A |
| Power - Max | 25 W |
| Switching Energy | 600µJ (on), 5mJ (off) |
| Input Type | Standard |
| Gate Charge | 33 nC |
| Td (on/off) @ 25°C | 700ns/1.2µs |
| Test Condition | 480V, 10A, 1kOhm, 15V |
| Reverse Recovery Time (trr) | 37 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 Full Pack |
| Supplier Device Package | TO-220FP |
