IGBT 1200V 10A 75W DPAK

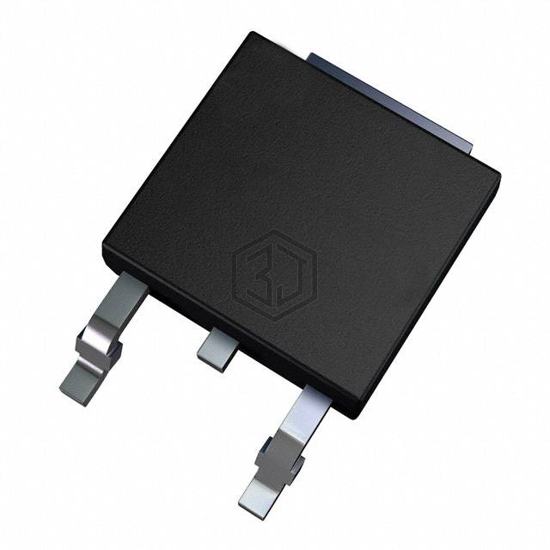

STGD5NB120SZT4 is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 1200V 10A 75W DPAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63, current - collector (ic) (max) 10 A.
In Stock: 4,110
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 10 A |
| Current - Collector Pulsed (Icm) | 10 A |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 5A |
| Power - Max | 75 W |
| Switching Energy | 2.59mJ (on), 9mJ (off) |
| Input Type | Standard |
| Gate Charge | - |
| Td (on/off) @ 25°C | 690ns/12.1µs |
| Test Condition | 960V, 5A, 1kOhm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | DPAK |
