TRENCH GATE FIELD-STOP IGBT, H S

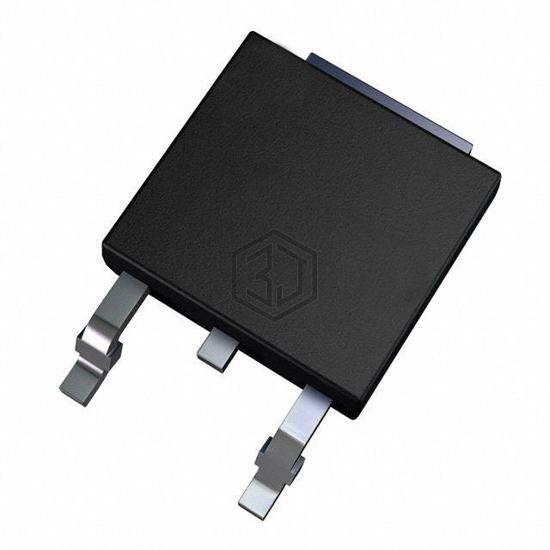

STGD5H60DF is a Transistors - IGBTs - Single manufactured by STMicroelectronics. TRENCH GATE FIELD-STOP IGBT, H S. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63, current - collector (ic) (max) 10 A.
In Stock: 3,915
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 10 A |
| Current - Collector Pulsed (Icm) | 20 A |
| Vce(on) (Max) @ Vge, Ic | 1.95V @ 15V, 5A |
| Power - Max | 83 W |
| Switching Energy | 56µJ (on), 78.5µJ (off) |
| Input Type | Standard |
| Gate Charge | 43 nC |
| Td (on/off) @ 25°C | 30ns/140ns |
| Test Condition | 400V, 5A, 47Ohm, 15V |
| Reverse Recovery Time (trr) | 134.5 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | DPAK |
