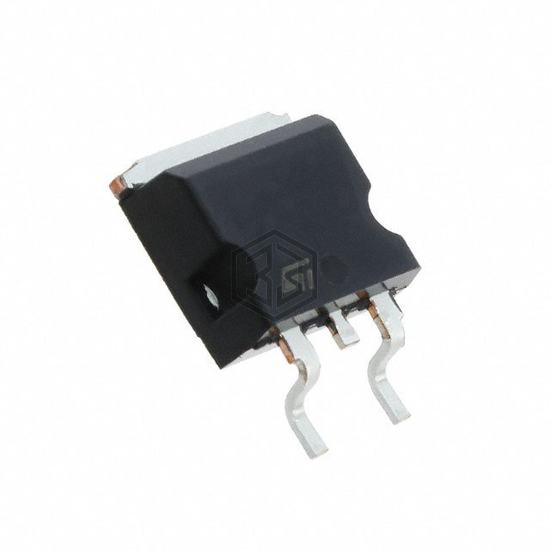

IGBT 600V 14A 88W D2PAK
STGB7H60DF is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 600V 14A 88W D2PAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB, current - collector (ic) (max) 14 A.
In Stock: 6,850
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 14 A |
| Current - Collector Pulsed (Icm) | 28 A |
| Vce(on) (Max) @ Vge, Ic | 1.95V @ 15V, 7A |
| Power - Max | 88 W |
| Switching Energy | 99µJ (on), 100µJ (off) |
| Input Type | Standard |
| Gate Charge | 46 nC |
| Td (on/off) @ 25°C | 30ns/160ns |
| Test Condition | 400V, 7A, 47Ohm, 15V |
| Reverse Recovery Time (trr) | 136 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | D²PAK (TO-263) |
Submit your RFQ for STGB7H60DF and get a quote within 24 hours.
