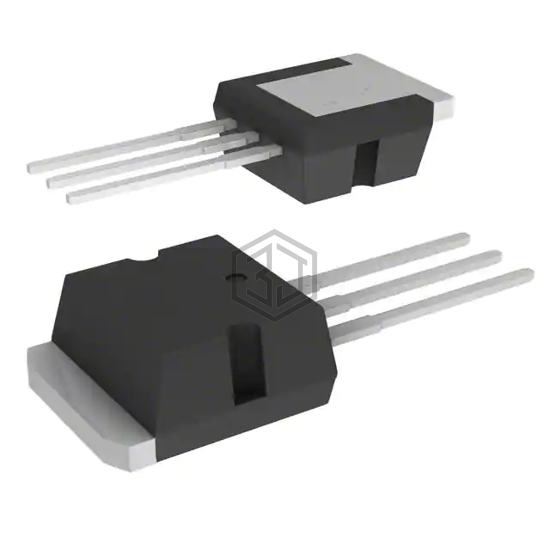

IGBT 345V 40A 176W I2PAK
STGB35N35LZ-1 is a Transistors - IGBTs - Single manufactured by STMicroelectronics. IGBT 345V 40A 176W I2PAK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-262-3 Long Leads, I²Pak, TO-262AA, current - collector (ic) (max) 40 A.
In Stock: 951
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 345 V |
| Current - Collector (Ic) (Max) | 40 A |
| Current - Collector Pulsed (Icm) | 80 A |
| Vce(on) (Max) @ Vge, Ic | 1.7V @ 4.5V, 15A |
| Power - Max | 176 W |
| Switching Energy | - |
| Input Type | Logic |
| Gate Charge | 49 nC |
| Td (on/off) @ 25°C | 1.1µs/26.5µs |
| Test Condition | 300V, 15A, 5V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA |
| Supplier Device Package | I2PAK (TO-262) |
Submit your RFQ for STGB35N35LZ-1 and get a quote within 24 hours.
