TRENCH GATE FIELD-STOP IGBT, HB

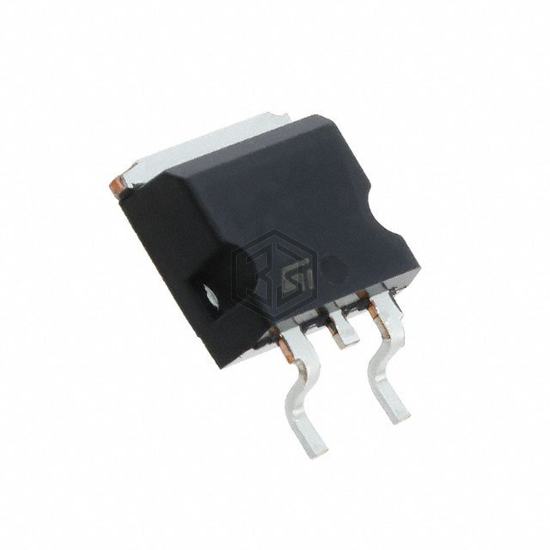

STGB30H60DLFB is a Transistors - IGBTs - Single manufactured by STMicroelectronics. TRENCH GATE FIELD-STOP IGBT, HB. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB, current - collector (ic) (max) 60 A.
In Stock: 2,652
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 60 A |
| Current - Collector Pulsed (Icm) | 120 A |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 30A |
| Power - Max | 260 W |
| Switching Energy | 393µJ (off) |
| Input Type | Standard |
| Gate Charge | 149 nC |
| Td (on/off) @ 25°C | -/146ns |
| Test Condition | 400V, 30A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | D²PAK (TO-263) |
Submit your RFQ for STGB30H60DLFB and get a quote within 24 hours.
