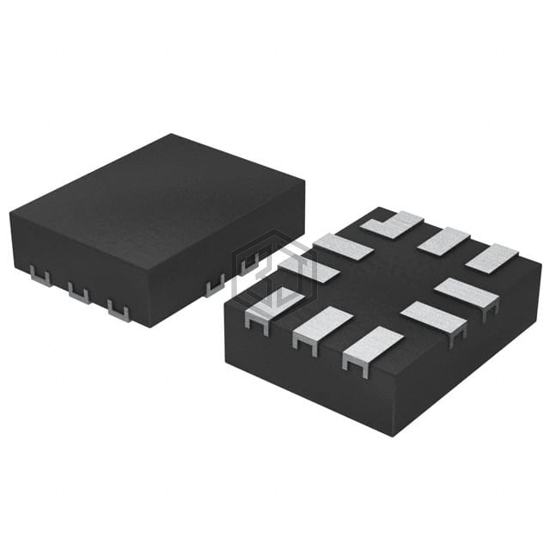

IC SWITCH DUAL SPDT 10QFN
STG5223QTR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by STMicroelectronics. IC SWITCH DUAL SPDT 10QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFQFN, number of circuits 2.
In Stock: 8,319
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 500mOhm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 55ns, 30ns |
| -3db Bandwidth | 55MHz |
| Charge Injection | 49pC |
| Channel Capacitance (CS(off), CD(off)) | 40pF |
| Current - Leakage (IS(off)) (Max) | 20nA |
| Crosstalk | -72dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFQFN |
| Supplier Device Package | 10-QFN (1.8x1.4) |
STG5223QTR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| FSA2259UMX | onsemi | IC SWITCH DUAL SPDT 10UMLP | 89% | View |
| STG3684AUTR | STMicroelectronics | IC SWITCH DUAL SPDT 10QFN | 87% | View |
| STG3684ADTR | STMicroelectronics | IC SWITCH DUAL SPDT 10UFDFN | 87% | View |
| STG4210QTR | STMicroelectronics | IC SWITCH DUAL SPST 10QFN | 79% | View |
| FSA2156P6 | Fairchild Semiconductor | SPST, 1 CHANNEL, CMOS, PDSO6 | 77% | View |
| FSA5157P6X | onsemi | IC SWITCH SPDT SC70-6 | 72% | View |
Submit your RFQ for STG5223QTR and get a quote within 24 hours.
