SPST, 1 CHANNEL, CMOS, PDSO6

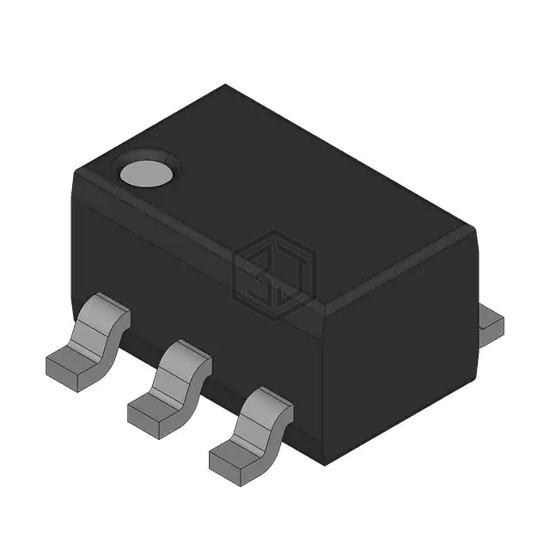

FSA2156P6 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Fairchild Semiconductor. SPST, 1 CHANNEL, CMOS, PDSO6. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 6-TSSOP, SC-88, SOT-363, number of circuits 1.
In Stock: 2,750
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 360mOhm (Typ) |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 55ns, 65ns |
| -3db Bandwidth | 80MHz |
| Charge Injection | 6pC |
| Channel Capacitance (CS(off), CD(off)) | 38pF |
| Current - Leakage (IS(off)) (Max) | 10nA |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-88 (SC-70-6) |
FSA2156P6 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| FSA2156P6X | Fairchild Semiconductor | LOW VOLTAGE SPST 0.4 OHM ANALOG | 100% | View |
| FSA2156L6X | Fairchild Semiconductor | LOW VOLTAGE SPST 0.4 OHM ANALOG | 100% | View |
| FSA5157P6X | onsemi | IC SWITCH SPDT SC70-6 | 95% | View |
| FSA2259UMX | onsemi | IC SWITCH DUAL SPDT 10UMLP | 78% | View |
| STG3155DTR | STMicroelectronics | IC SWITCH SPDT 6DFN | 77% | View |
| STG3684AUTR | STMicroelectronics | IC SWITCH DUAL SPDT 10QFN | 64% | View |
