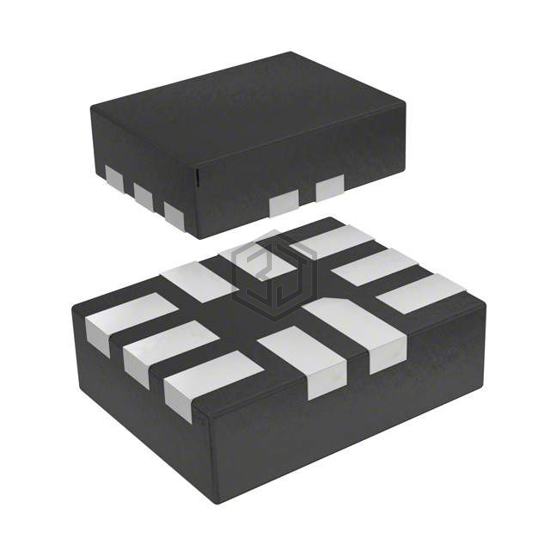

IC SWITCH DUAL SPDT 10UMLP
FSA2259UMX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by onsemi. IC SWITCH DUAL SPDT 10UMLP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFQFN, number of circuits 2.
In Stock: 8,378
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 500mOhm (Typ) |
| Channel-to-Channel Matching (ΔRon) | 80mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.4V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 55ns, 30ns |
| -3db Bandwidth | 50MHz |
| Charge Injection | 25pC |
| Channel Capacitance (CS(off), CD(off)) | 30pF |
| Current - Leakage (IS(off)) (Max) | 10nA |
| Crosstalk | -100dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFQFN |
| Supplier Device Package | 10-UMLP (1.8x1.4) |
FSA2259UMX is Last Time Buy. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| STG5223QTR | STMicroelectronics | IC SWITCH DUAL SPDT 10QFN | 89% | View |
| FSA2156P6 | Fairchild Semiconductor | SPST, 1 CHANNEL, CMOS, PDSO6 | 78% | View |
| FSA2156P6X | Fairchild Semiconductor | LOW VOLTAGE SPST 0.4 OHM ANALOG | 78% | View |
| STG3684AUTR | STMicroelectronics | IC SWITCH DUAL SPDT 10QFN | 78% | View |
| STG3684ADTR | STMicroelectronics | IC SWITCH DUAL SPDT 10UFDFN | 78% | View |
| FSA5157P6X | onsemi | IC SWITCH SPDT SC70-6 | 77% | View |
Submit your RFQ for FSA2259UMX and get a quote within 24 hours.
