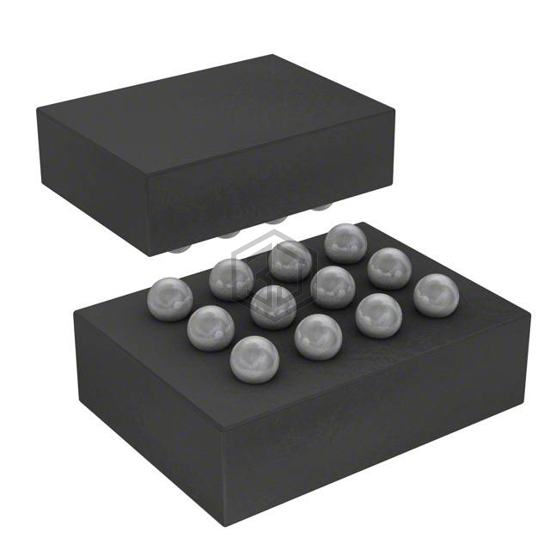

IC SWITCH DUAL SPDT 12FLIPCHIP
STG4260BJR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by STMicroelectronics. IC SWITCH DUAL SPDT 12FLIPCHIP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 12-UFBGA, FCBGA, number of circuits 2.
In Stock: 8,093
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 500mOhm |
| Channel-to-Channel Matching (ΔRon) | 10mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.8V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 38ns, 38ns |
| -3db Bandwidth | 50MHz |
| Charge Injection | 140pC |
| Channel Capacitance (CS(off), CD(off)) | 30pF |
| Current - Leakage (IS(off)) (Max) | 30nA |
| Crosstalk | -67dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 12-UFBGA, FCBGA |
| Supplier Device Package | 12-FlipChip |
STG4260BJR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| STG4160BJR | STMicroelectronics | IC SWITCH SGL SPDT 2:1 8FLIPCHIP | 94% | View |
| STG4259BJR | STMicroelectronics | IC SWITCH DUAL SPDT 11FLIPCHIP | 90% | View |
| STG4159BJR | STMicroelectronics | IC SWITCH SPDT 7CLIPCHIP | 77% | View |
| ADG1633BRUZ | Analog Devices Inc. | IC SWITCH TRPL SPDT 16TSSOP | 50% | View |
| ADG1633BCPZ-REEL7 | Analog Devices Inc. | IC SWITCH TRPL SPDT 16LFCSP | 50% | View |
| ADG1633BRUZ-REEL7 | Analog Devices Inc. | IC SWITCH TRPL SPDT 16TSSOP | 50% | View |
Submit your RFQ for STG4260BJR and get a quote within 24 hours.
