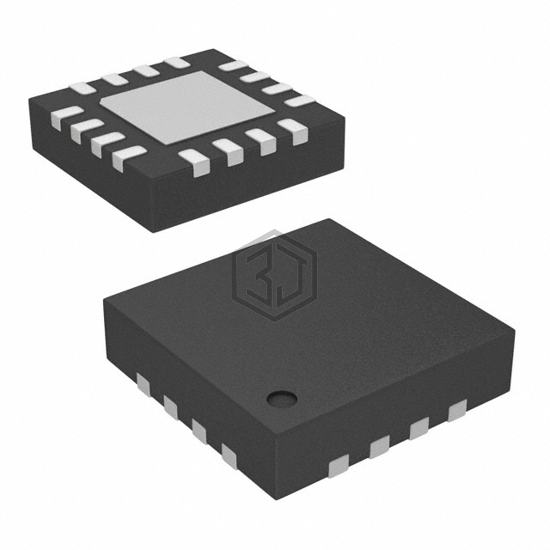

IC SWITCH TRPL SPDT 16LFCSP
ADG1633BCPZ-REEL7 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH TRPL SPDT 16LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-WFQFN Exposed Pad, CSP, number of circuits 3.
In Stock: 5,227
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 3 |
| On-State Resistance (Max) | 4.5Ohm |
| Channel-to-Channel Matching (ΔRon) | 120mOhm |
| Voltage - Supply, Single (V+) | 3.3V ~ 16V |
| Voltage - Supply, Dual (V±) | ±3.3V ~ 8V |
| Switch Time (Ton, Toff) (Max) | 38ns, 152ns |
| -3db Bandwidth | 109MHz |
| Charge Injection | -12.4pC |
| Channel Capacitance (CS(off), CD(off)) | 19pF, 32pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -64dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG1633BRUZ | Analog Devices Inc. | IC SWITCH TRPL SPDT 16TSSOP | 100% | View |
| ADG1633BRUZ-REEL7 | Analog Devices Inc. | IC SWITCH TRPL SPDT 16TSSOP | 100% | View |
| ADG1634BRUZ-REEL7 | Analog Devices Inc. | IC SW SPDT 4.5OHM RON 20TSSOP | 98% | View |
| ADG1634BCPZ-REEL7 | Analog Devices Inc. | IC SWITCH QUAD SPDT 20LFCSP | 98% | View |
| ADG1634BRUZ | Analog Devices Inc. | IC SW SPDT 4.5OHM RON 20TSSOP | 98% | View |
| 74HC4852BQ,115 | Nexperia USA Inc. | IC MUX/DEMUX DUAL 4X1 16DHVQFN | 60% | View |
Submit your RFQ for ADG1633BCPZ-REEL7 and get a quote within 24 hours.
