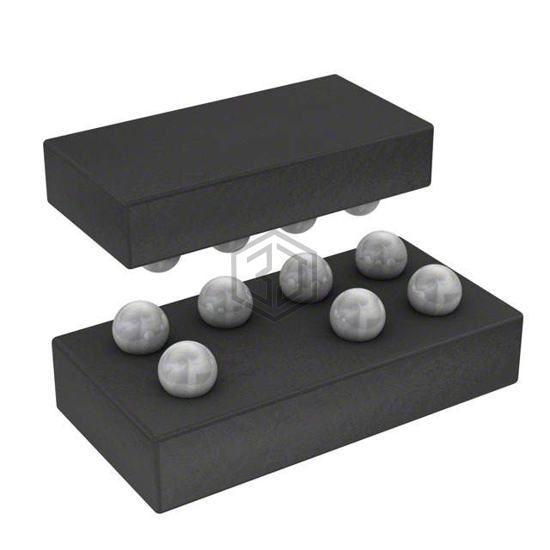

IC SWITCH SPDT 7CLIPCHIP
STG4159BJR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by STMicroelectronics. IC SWITCH SPDT 7CLIPCHIP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 7-WFBGA, FCBGA, number of circuits 1.
In Stock: 1,535
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 300mOhm |
| Channel-to-Channel Matching (ΔRon) | 3mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.8V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 38ns, 17ns |
| -3db Bandwidth | 28MHz |
| Charge Injection | 140pC |
| Channel Capacitance (CS(off), CD(off)) | 30pF |
| Current - Leakage (IS(off)) (Max) | 30nA |
| Crosstalk | -69dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 7-WFBGA, FCBGA |
| Supplier Device Package | 7-FlipChip |
STG4159BJR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| STG4160BJR | STMicroelectronics | IC SWITCH SGL SPDT 2:1 8FLIPCHIP | 82% | View |
| STG4259BJR | STMicroelectronics | IC SWITCH DUAL SPDT 11FLIPCHIP | 80% | View |
| DG3000DB-T1-E1 | Vishay Siliconix | IC SWITCH SPST 6-MICRO FOOT | 78% | View |
| MP2736DQG-LF-P | Monolithic Power Systems Inc. | IC SWITCH DUAL SPDT 10QFN | 69% | View |
| SN74HC4852D | Texas Instruments | IC MUX/DEMUX DUAL 4X1 16SOIC | 65% | View |
| 74HC4852BQ,115 | Nexperia USA Inc. | IC MUX/DEMUX DUAL 4X1 16DHVQFN | 60% | View |
Submit your RFQ for STG4159BJR and get a quote within 24 hours.
