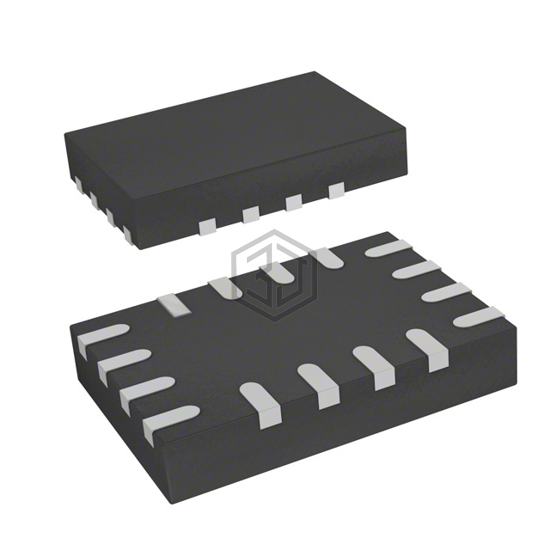

IC SWITCH QUAD SPDT 16QFN
STG3699BVTR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by STMicroelectronics. IC SWITCH QUAD SPDT 16QFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TA), package / case 16-UFQFN, number of circuits 4.
In Stock: 6,421
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 500mOhm |
| Channel-to-Channel Matching (ΔRon) | 150mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 55ns, 30ns |
| -3db Bandwidth | 40MHz |
| Charge Injection | 57pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF |
| Current - Leakage (IS(off)) (Max) | 20nA |
| Crosstalk | -72dB @ 100kHz |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-UFQFN |
| Supplier Device Package | 16-QFN (2.6x1.8) |
STG3699BVTR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 5962-9201401M2A | Analog Devices Inc. | ANALOG MUX SINGLE 4:1 (AD9300) | 94% | View |
| STG3699AUTR | STMicroelectronics | IC SWITCH QUAD SPDT 16QFN | 93% | View |
| STG3699AQTR | STMicroelectronics | IC SWITCH QUAD SPDT 16QFN | 93% | View |
| STG3690QTR | STMicroelectronics | IC SWITCH QUAD SPDT 16QFN | 87% | View |
| STG3856QTR | STMicroelectronics | IC SWITCH DUAL SP3T 12QFN | 64% | View |
| HI-8197PSTF | Holt Integrated Circuits Inc. | IC ANALOG SWITCH 4 X SPST 16SOIC | 58% | View |
Submit your RFQ for STG3699BVTR and get a quote within 24 hours.
