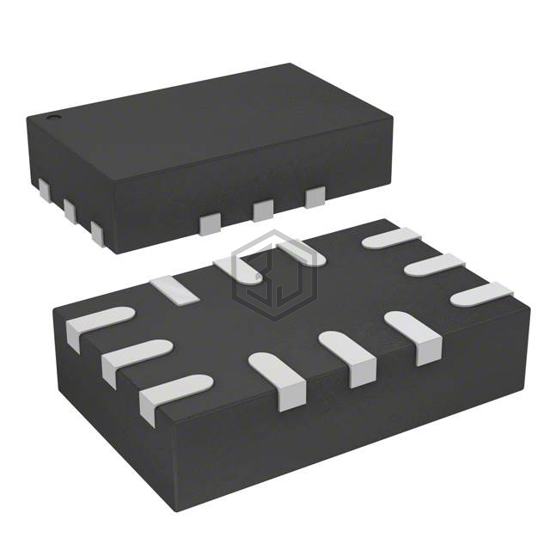

IC SWITCH DUAL SP3T 12QFN
STG3856QTR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by STMicroelectronics. IC SWITCH DUAL SP3T 12QFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TA), package / case 12-UFQFN, number of circuits 2.
In Stock: 6,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SP3T |
| Multiplexer/Demultiplexer Circuit | 3:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 1Ohm |
| Channel-to-Channel Matching (ΔRon) | 10mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 40ns, 20ns |
| -3db Bandwidth | 100MHz |
| Charge Injection | 55pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF |
| Current - Leakage (IS(off)) (Max) | 20nA |
| Crosstalk | -84dB @ 100kHz |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 12-UFQFN |
| Supplier Device Package | 12-QFN (2.2x1.4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 5962-9201401M2A | Analog Devices Inc. | ANALOG MUX SINGLE 4:1 (AD9300) | 75% | View |
| CD74HC4316PWR | Texas Instruments | IC SWITCH QUAD 1X2 16TSSOP | 58% | View |
| CD74HC4316NSR | Texas Instruments | IC SWITCH QUAD 1X2 16SO | 58% | View |
| CD74HC4316PW | Texas Instruments | IC SWITCH QUAD 1X2 16TSSOP | 58% | View |
| CD74HC4316ME4 | Texas Instruments | IC SWITCH QUAD 1X2 16SOIC | 58% | View |
| CD74HC4316PWRG4 | Texas Instruments | IC SWITCH QUAD 1X2 16TSSOP | 58% | View |
Submit your RFQ for STG3856QTR and get a quote within 24 hours.
