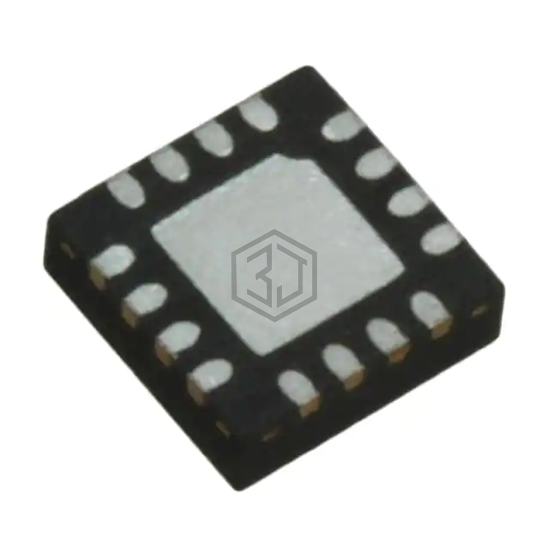

IC SWITCH QUAD SPDT 16QFN
STG3690QTR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by STMicroelectronics. IC SWITCH QUAD SPDT 16QFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TA), package / case 16-VFQFN Exposed Pad, number of circuits 4.
In Stock: 9,877
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 1.5Ohm |
| Channel-to-Channel Matching (ΔRon) | 60mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 50ns, 30ns |
| -3db Bandwidth | 50MHz |
| Charge Injection | 35pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF |
| Current - Leakage (IS(off)) (Max) | 10nA |
| Crosstalk | -54dB @ 100kHz |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) |
STG3690QTR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| STG3699QTR | STMicroelectronics | IC SWITCH QUAD SPDT 16QFN | 100% | View |
| 5962-9201401M2A | Analog Devices Inc. | ANALOG MUX SINGLE 4:1 (AD9300) | 97% | View |
| STG3680QTR | STMicroelectronics | IC SWITCH DUAL 2X1 16QFN | 94% | View |
| CD74HC4067SM96 | Texas Instruments | IC MUX/DEMUX 1X16 24SSOP | 56% | View |
| NLV74HC4067ADTR2G | onsemi | IC MUX/DEMUX QUAD 1X16 24TSSOP | 56% | View |
| CD74HC4067M | Texas Instruments | IC MUX/DEMUX 1X16 24SOIC | 56% | View |
Submit your RFQ for STG3690QTR and get a quote within 24 hours.
