HIGH-DENSITY POWER DRIVER - HIGH

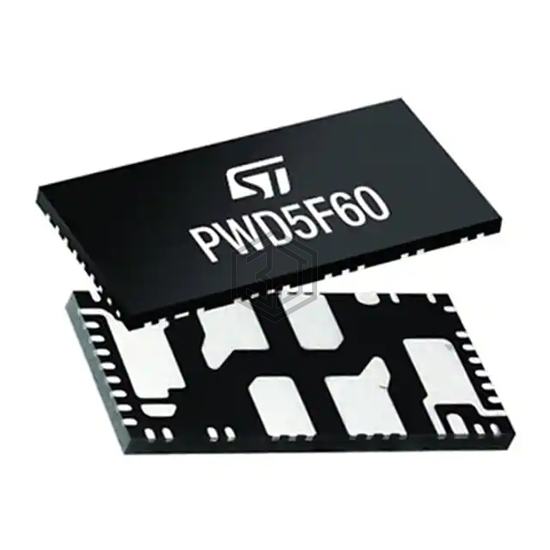

PWD5F60 is a PMIC - Full, Half-Bridge Drivers manufactured by STMicroelectronics. HIGH-DENSITY POWER DRIVER - HIGH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 10V ~ 20V, package / case 46-PowerVQFN.
In Stock: 9,910
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge (2) |
| Applications | Industrial |
| Interface | Logic |
| Load Type | Inductive |
| Technology | Power MOSFET |
| Rds On (Typ) | 1.38Ohm |
| Current - Output / Channel | 3.5A |
| Current - Peak Output | 14A |
| Voltage - Supply | 10V ~ 20V |
| Voltage - Load | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Features | - |
| Fault Protection | UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 46-PowerVQFN |
| Supplier Device Package | 46-VFQFPN (15x7) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PWD5F60TR | STMicroelectronics | HIGH-DENSITY POWER DRIVER - HIGH | 100% | View |
| L6201PSTR | STMicroelectronics | IC MOTOR DRIVER PAR 20POWERSO | 88% | View |
| L6201PS | STMicroelectronics | IC MOTOR DRIVER PAR 20POWERSO | 88% | View |
| L9959S-TR-D | STMicroelectronics | IC H-BRIDGE HIGH SIDE 24PSSOP | 72% | View |
| L9959U-TR-D | STMicroelectronics | POWERSSO36 | 72% | View |
| L9959T-TR-D | STMicroelectronics | IC H-BRIDGE HIGH SIDE 36PSSOP | 72% | View |
Submit your RFQ for PWD5F60 and get a quote within 24 hours.
