POWERSSO36

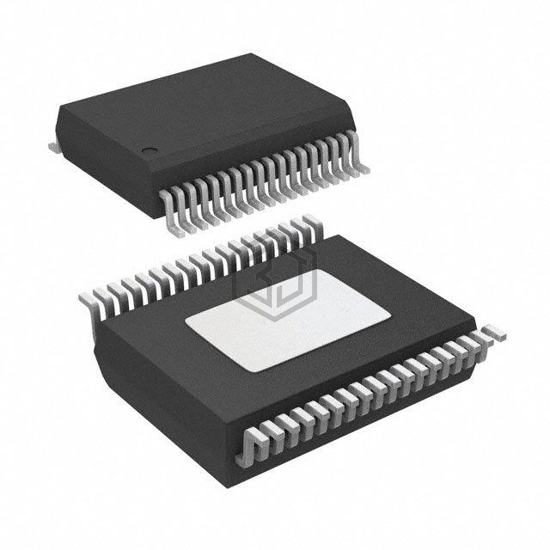

L9959U-TR-D is a PMIC - Full, Half-Bridge Drivers manufactured by STMicroelectronics. POWERSSO36. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4.5V ~ 5.5V, package / case 36-PowerFSOP (0.295", 7.50mm Width).
In Stock: 8,306
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge (2) |
| Applications | General Purpose |
| Interface | SPI |
| Load Type | Inductive, Capacitive, Resistive |
| Technology | PMOS |
| Rds On (Typ) | - |
| Current - Output / Channel | 3A |
| Current - Peak Output | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Voltage - Load | 5V ~ 28V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | - |
| Fault Protection | Over Temperature, Short Circuit |
| Mounting Type | Surface Mount |
| Package / Case | 36-PowerFSOP (0.295", 7.50mm Width) |
| Supplier Device Package | PowerSSO-36 EPD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| L9959S-TR-D | STMicroelectronics | IC H-BRIDGE HIGH SIDE 24PSSOP | 100% | View |
| L9959T-TR-D | STMicroelectronics | IC H-BRIDGE HIGH SIDE 36PSSOP | 100% | View |
| L9969S-TR | STMicroelectronics | ASSP | 100% | View |
| FAD6263M1X | onsemi | IC GATE DRIVER 600V 3A 16SOIC | 74% | View |
| L6201PSTR | STMicroelectronics | IC MOTOR DRIVER PAR 20POWERSO | 56% | View |
| L6201PS | STMicroelectronics | IC MOTOR DRIVER PAR 20POWERSO | 56% | View |
Submit your RFQ for L9959U-TR-D and get a quote within 24 hours.
