IC BRIDGE DRIVER PAR 20POWERSO

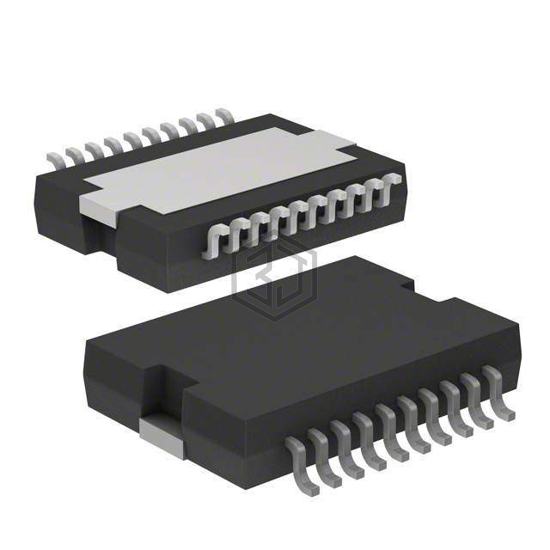

E-L6201PSTR is a PMIC - Full, Half-Bridge Drivers manufactured by STMicroelectronics. IC BRIDGE DRIVER PAR 20POWERSO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 12V ~ 48V, package / case 20-SOIC (0.433", 11.00mm Width) Exposed Pad.
In Stock: 9,165
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Half Bridge (2) |
| Applications | DC Motors, General Purpose |
| Interface | Logic |
| Load Type | Inductive |
| Technology | BCDMOS |
| Rds On (Typ) | 300mOhm |
| Current - Output / Channel | 4A |
| Current - Peak Output | - |
| Voltage - Supply | 12V ~ 48V |
| Voltage - Load | 12V ~ 48V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit |
| Fault Protection | Over Temperature |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.433", 11.00mm Width) Exposed Pad |
| Supplier Device Package | PowerSO-20 |
E-L6201PSTR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| L6201PSTR | STMicroelectronics | IC MOTOR DRIVER PAR 20POWERSO | 100% | View |
| L6201PS | STMicroelectronics | IC MOTOR DRIVER PAR 20POWERSO | 100% | View |
| MC33186VW2R2 | Freescale Semiconductor | IC MOTOR DRIVER PAR 20HSOP | 60% | View |
| L9959S-TR-D | STMicroelectronics | IC H-BRIDGE HIGH SIDE 24PSSOP | 56% | View |
| L9959U-TR-D | STMicroelectronics | POWERSSO36 | 56% | View |
| L9959T-TR-D | STMicroelectronics | IC H-BRIDGE HIGH SIDE 36PSSOP | 56% | View |
Submit your RFQ for E-L6201PSTR and get a quote within 24 hours.
