5V POWER DUAL HALF BRIDGE

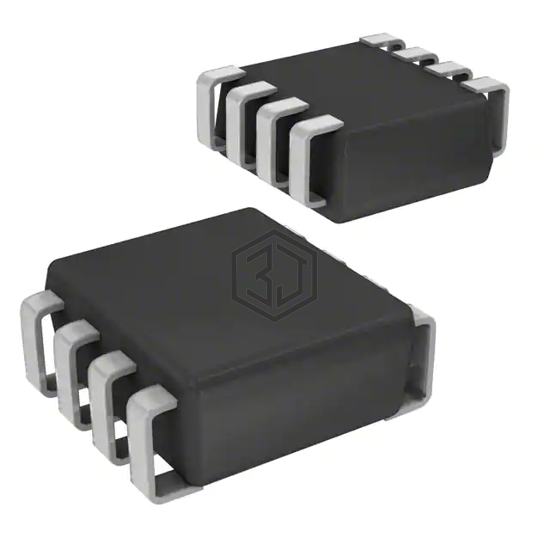

AAT4901IJS-1-T1 is a PMIC - Full, Half-Bridge Drivers manufactured by Skyworks Solutions Inc.. 5V POWER DUAL HALF BRIDGE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 2V ~ 5.5V, package / case 8-TFSOJ (0.069", 1.75mm Width).
In Stock: 6,768
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Half Bridge (2) |
| Applications | DC Motors, Solenoids, Transformers |
| Interface | Logic |
| Load Type | Inductive |
| Technology | Power MOSFET |
| Rds On (Typ) | 200mOhm LS, 240mOhm HS |
| Current - Output / Channel | 700mA |
| Current - Peak Output | 3A |
| Voltage - Supply | 2V ~ 5.5V |
| Voltage - Load | 2V ~ 5.5V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | - |
| Fault Protection | Over Temperature, Shoot-Through |
| Mounting Type | Surface Mount |
| Package / Case | 8-TFSOJ (0.069", 1.75mm Width) |
| Supplier Device Package | 8-SC70JW |
AAT4901IJS-1-T1 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AAT4901IJS-3-T1 | Skyworks Solutions Inc. | IC DRIVER GATE HALF BRIDGE SC70 | 100% | View |
| TPM8837E-DF4R | 3PEAK | H-BRIDGE DRIVER 17V 1A 8-DFN | 84% | View |
| MAX256ASA+ | Analog Devices Inc./Maxim Integrated | IC DVR H-BRIDGE 3W 8-SOIC | 72% | View |
| MAX256ASA+T | Analog Devices Inc./Maxim Integrated | IC DRVR H-BRIDGE 8-SOIC | 72% | View |
| MAX256ASA/V+T | Analog Devices Inc./Maxim Integrated | 3W PRIMARY-SIDE TRANSFORMER H-BR | 72% | View |
| LV11961HA-AH | onsemi | IC MOTOR DRIVER 18V 14HSSOP | 65% | View |
