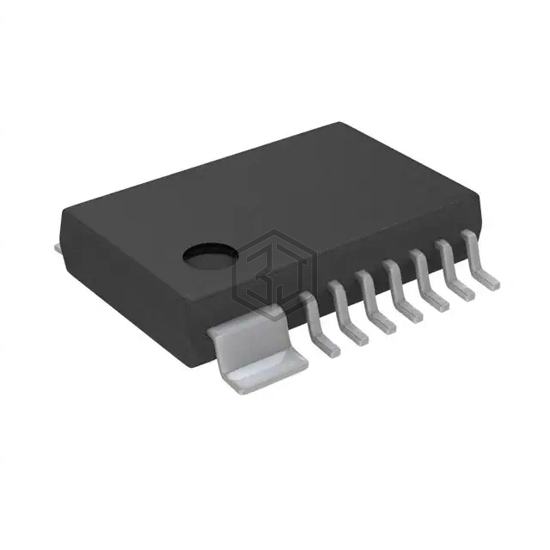

IC MOTOR DRIVER 18V 14HSSOP
LV11961HA-AH is a PMIC - Full, Half-Bridge Drivers manufactured by onsemi. IC MOTOR DRIVER 18V 14HSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 3.6V ~ 16V, package / case 14-LSSOP (0.173", 4.40mm Width) + 2 Heat Tabs.
In Stock: 443,298
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge (2) |
| Applications | DC Motors, General Purpose |
| Interface | Logic |
| Load Type | Inductive |
| Technology | Bi-CMOS |
| Rds On (Typ) | - |
| Current - Output / Channel | 1A |
| Current - Peak Output | - |
| Voltage - Supply | 3.6V ~ 16V |
| Voltage - Load | 3.6V ~ 16V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Slew Rate Controlled |
| Fault Protection | Over Temperature, Over Voltage, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 14-LSSOP (0.173", 4.40mm Width) + 2 Heat Tabs |
| Supplier Device Package | 14-HSSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX256ASA+ | Analog Devices Inc./Maxim Integrated | IC DVR H-BRIDGE 3W 8-SOIC | 94% | View |
| MAX256ASA+T | Analog Devices Inc./Maxim Integrated | IC DRVR H-BRIDGE 8-SOIC | 94% | View |
| MAX13256ATB+T | Analog Devices Inc./Maxim Integrated | IC TRANSFORMER HBRIDGE 10TDFN | 65% | View |
| NJW4814MLE-TE1 | Nisshinbo Micro Devices Inc. | DUAL H-BRIDGE DRIVER WITH BOOST | 63% | View |
| L6201013TR | STMicroelectronics | IC MOTOR DRIVER PAR 20SOIC | 57% | View |
| L6201 | STMicroelectronics | IC MOTOR DRIVER PAR 20SOIC | 57% | View |
Submit your RFQ for LV11961HA-AH and get a quote within 24 hours.
