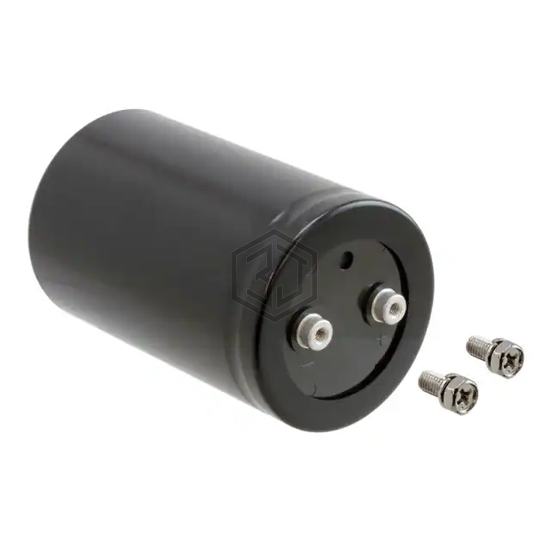

CAP ALUM 22000UF 20% 50V SCREW
50LSW22000MEFC36X118 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 22000UF 20% 50V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - Screw Terminals.
In Stock: 8,815
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 7.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 8.1 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.417" Dia (36.00mm) |
| Height - Seated (Max) | 4.803" (122.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 63LSW22000MNB51X83 | Rubycon | CAP ALUM 22000UF 20% 63V SCREW | 93% | View |
| SWAB100223M050B | KYOCERA AVX | SERIES: SWA/ CASE: B10/ CAP: 022 | 91% | View |
| ELXA500LGC223TCA0U | Chemi-Con | CAP ALUM 15MF 20% 50V SCREW CHAS | 89% | View |
| LNT1K223MSE | Nichicon | CAP ALUM 22000UF 20% 80V SCREW | 79% | View |
| LNT1V223MSE | Nichicon | CAP ALUM 22000UF 20% 35V SCREW | 77% | View |
| 80LSW22000MEFC51X118 | Rubycon | CAP ALUM 22000UF 20% 80V SCREW | 77% | View |
Submit your RFQ for 50LSW22000MEFC36X118 and get a quote within 24 hours.
