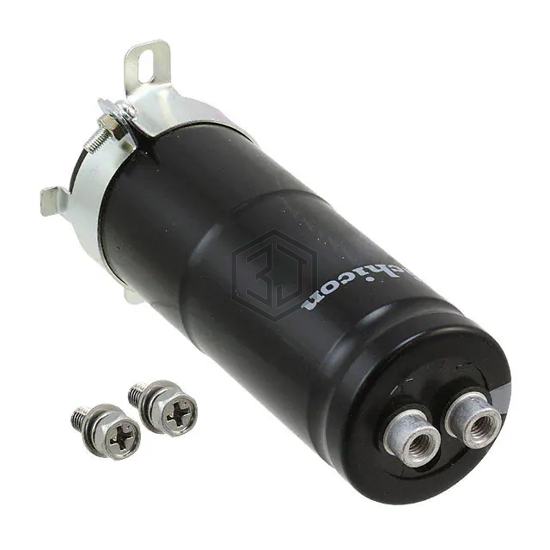

CAP ALUM 22000UF 20% 35V SCREW
LNT1V223MSE is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22000UF 20% 35V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - Screw Terminals.
In Stock: 5,235
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 6.44 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 4.055" (103.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXA500LGC223TCA0U | Chemi-Con | CAP ALUM 15MF 20% 50V SCREW CHAS | 87% | View |
| 50LSW22000MEFC36X118 | Rubycon | CAP ALUM 22000UF 20% 50V SCREW | 77% | View |
| 63LSW22000MNB51X83 | Rubycon | CAP ALUM 22000UF 20% 63V SCREW | 69% | View |
| LNT1K223MSE | Nichicon | CAP ALUM 22000UF 20% 80V SCREW | 60% | View |
| 80LSW22000MEFC51X118 | Rubycon | CAP ALUM 22000UF 20% 80V SCREW | 57% | View |
| B41580A8229M000 | EPCOS - TDK Electronics | CAP ALUM 22000UF 20% 63V SCREW | 51% | View |
Submit your RFQ for LNT1V223MSE and get a quote within 24 hours.
