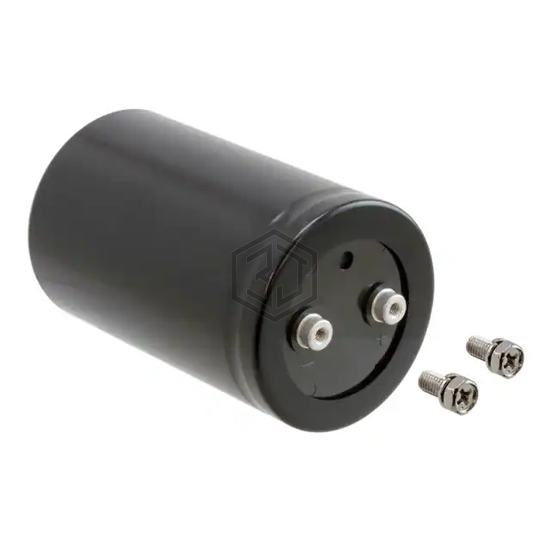

CAP ALUM 22000UF 20% 80V SCREW
80LSW22000MEFC51X118 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 22000UF 20% 80V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - Screw Terminals.
In Stock: 4,455
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 9 A @ 120 Hz |
| Ripple Current @ High Frequency | 9.9 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.858" (21.80mm) |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 4.803" (122.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNT1K223MSE | Nichicon | CAP ALUM 22000UF 20% 80V SCREW | 98% | View |
| 63LSW22000MNB51X83 | Rubycon | CAP ALUM 22000UF 20% 63V SCREW | 84% | View |
| 50LSW22000MEFC36X118 | Rubycon | CAP ALUM 22000UF 20% 50V SCREW | 77% | View |
| B41554B9229Q000 | EPCOS - TDK Electronics | CAP ALUM 22000UF 100V SCREW | 76% | View |
| ALS40A223DB025 | KEMET | CAP ALUM SCRW TERM 105C | 74% | View |
| B41560A9229M003 | EPCOS - TDK Electronics | CAP ALUM 22000UF 20% 100V SCREW | 70% | View |
Submit your RFQ for 80LSW22000MEFC51X118 and get a quote within 24 hours.
