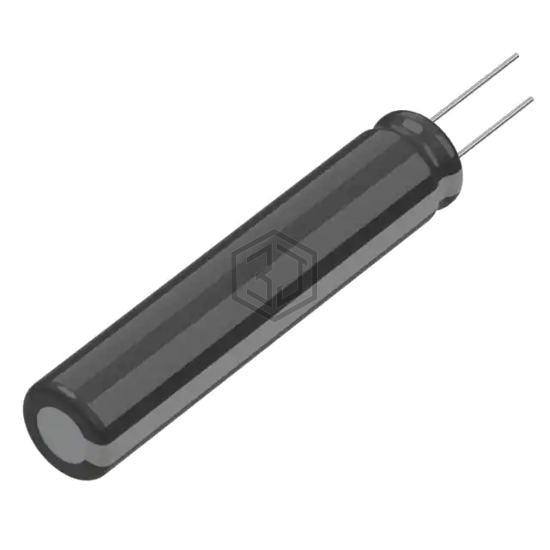

CAP ALUM 39UF 20% 450V RADIAL TH
450TXW39MEFR10X50 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 39UF 20% 450V RADIAL TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 3,475
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 39 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 410 mA @ 120 Hz |
| Ripple Current @ High Frequency | 615 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 2.067" (52.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 420HXW39MEFR10X30 | Rubycon | CAP ALUM 39UF 20% 420V RADIAL | 95% | View |
| 400TXW39MEFR10X40 | Rubycon | CAP ALUM 39UF 20% 400V RADIAL TH | 95% | View |
| UCY2W390MHD | Nichicon | CAP ALUM 39UF 20% 450V RADIAL | 88% | View |
| 400LXW39MEFR10X30 | Rubycon | CAP ALUM 39UF 20% 400V RADIAL | 87% | View |
| 400LXW39MEFR12.5X20 | Rubycon | CAP ALUM 39UF 20% 400V RADIAL | 87% | View |
| UCY2E390MPD | Nichicon | CAP ALUM 39UF 20% 250V RADIAL | 75% | View |
Submit your RFQ for 450TXW39MEFR10X50 and get a quote within 24 hours.
