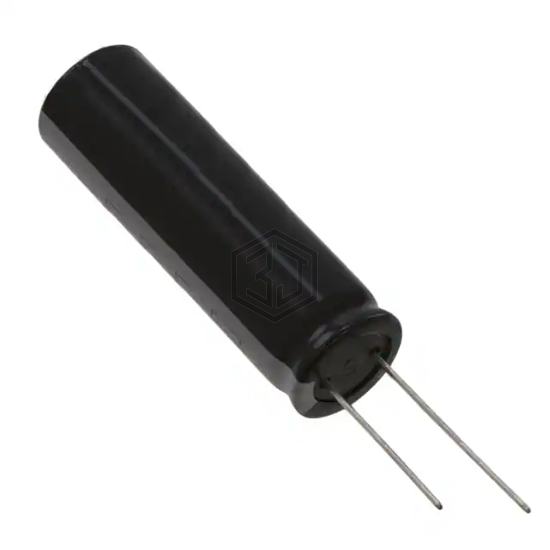

CAP ALUM 39UF 20% 420V RADIAL
420HXW39MEFR10X30 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 39UF 20% 420V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can.
In Stock: 8,286
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 39 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 380 mA @ 120 Hz |
| Ripple Current @ High Frequency | 600 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400TXW39MEFR10X40 | Rubycon | CAP ALUM 39UF 20% 400V RADIAL TH | 97% | View |
| 400QXW39MEFR8X50 | Rubycon | CAP ALUM 39UF 20% 400V RADIAL | 95% | View |
| 450TXW39MEFR10X50 | Rubycon | CAP ALUM 39UF 20% 450V RADIAL TH | 95% | View |
| EEU-FC2A390L | Panasonic Electronic Components | CAP ALUM 39UF 20% 100V RADIAL | 66% | View |
| EEU-FC2A390 | Panasonic Electronic Components | CAP ALUM 39UF 20% 100V RADIAL | 59% | View |
| EKZN630ELL390MF11D | United Chemi-Con | CAP ALUM 39UF 20% 63V RADIAL | 51% | View |
