CAP ALUM 39UF 20% 250V RADIAL

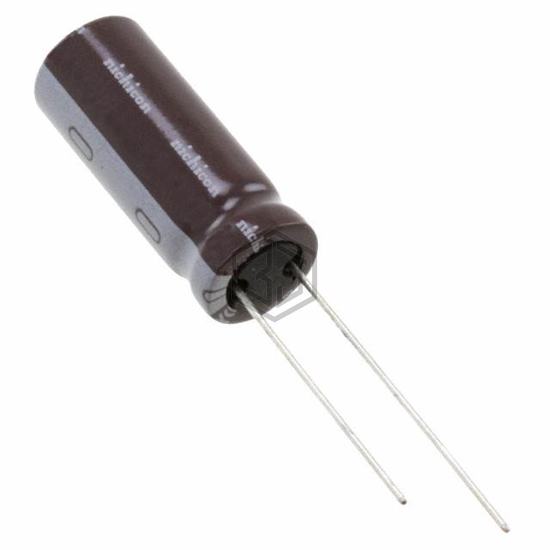

UCY2E390MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 39UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 3,752
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 39 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 345 mA @ 120 Hz |
| Ripple Current @ High Frequency | 690 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCY2D390MPD1TD | Nichicon | CAP ALUM 39UF 20% 200V RADIAL | 90% | View |
| EKWA401ELL390MJ35S | United Chemi-Con | RADIAL ALUMINUM ELECTROLYTIC CAP | 83% | View |
| 400TXW39MEFR10X40 | Rubycon | CAP ALUM 39UF 20% 400V RADIAL TH | 79% | View |
| 400LXW39MEFR12.5X20 | Rubycon | CAP ALUM 39UF 20% 400V RADIAL | 78% | View |
| 400LXW39MEFR10X30 | Rubycon | CAP ALUM 39UF 20% 400V RADIAL | 75% | View |
| 450TXW39MEFR10X50 | Rubycon | CAP ALUM 39UF 20% 450V RADIAL TH | 75% | View |
