CAP ALUM 470UF 20% 35V RADIAL

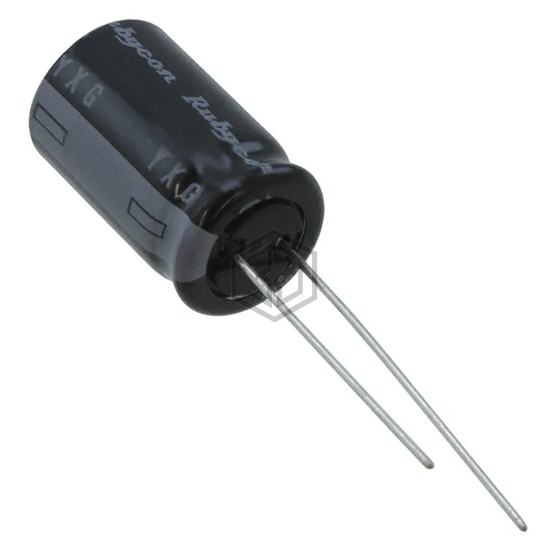

35YXG470MEFCGA12.5X16 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 470UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 1,927
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 797.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.45 A @ 100 kHz |
| Impedance | 49 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41896C5477M000 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 25V RADIAL | 80% | View |
| MAL215038471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 63V RADIAL | 74% | View |
| ELXV630ELL471MK35S | United Chemi-Con | CAP ALUM 470UF 20% 63V RADIAL | 70% | View |
| EEU-FM1A471BJ | Panasonic Electronic Components | CAP ALUM 470UF 20% 10V RADIAL | 69% | View |
| LP471M200E1P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 470UF 20% 200V SNAP | 68% | View |
| LGN2D471MELZ30 | Nichicon | CAP ALUM 470UF 20% 200V SNAP | 54% | View |
