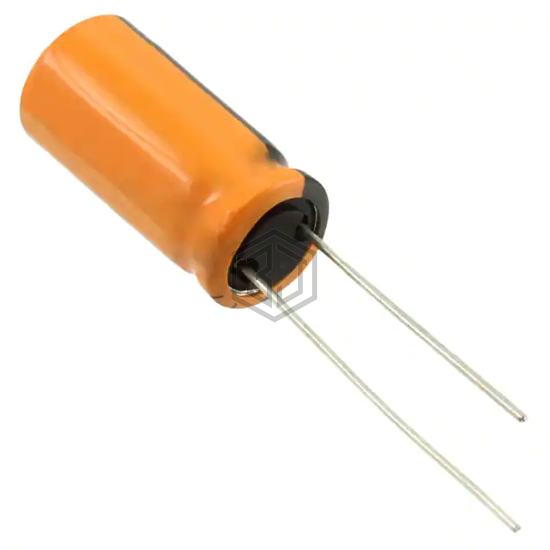

CAP ALUM 470UF 20% 25V RADIAL
B41896C5477M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 470UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 4,845
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 457mOhm @ 120Hz |
| Lifetime @ Temp. | 3500 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 1.205 A @ 100 kHz |
| Impedance | 62 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214656471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 25V RADIAL | 95% | View |
| MAL214060471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 35V RADIAL | 80% | View |
| MAL226036471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 25V RADIAL | 77% | View |
| B41866C5477M000 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 25V RADIAL | 71% | View |
| MAL226030471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 35V RADIAL | 67% | View |
| MAL214091473E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 50V RADIAL | 59% | View |
Submit your RFQ for B41896C5477M000 and get a quote within 24 hours.
